Parts of the machine

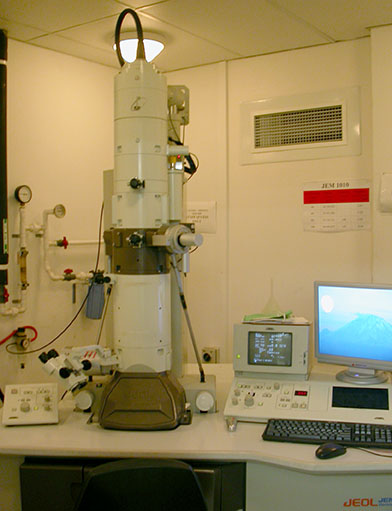

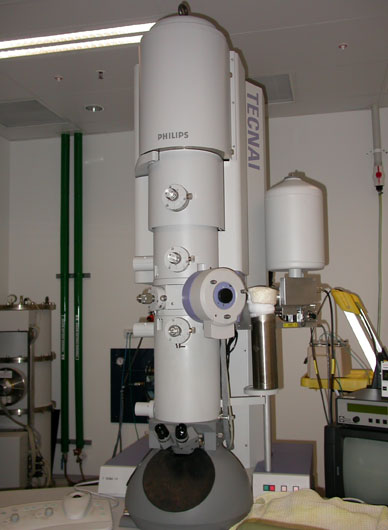

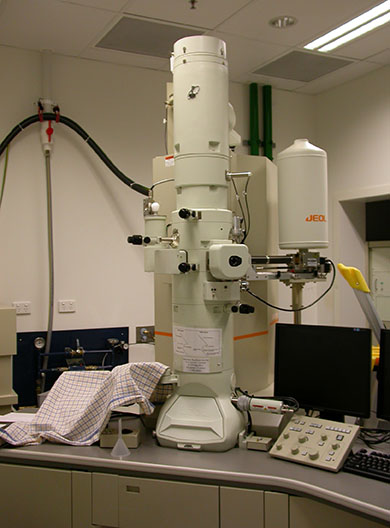

The typical transmission electron microscope laboratory contains a machine with these components:

Electron gun
Electron column
Electro-magnetic lens system
Detectors
Water chilling system
Specimen/sample chamber
Main control panel and operational controls
Image capture
