Minimised Maps
BSE Image

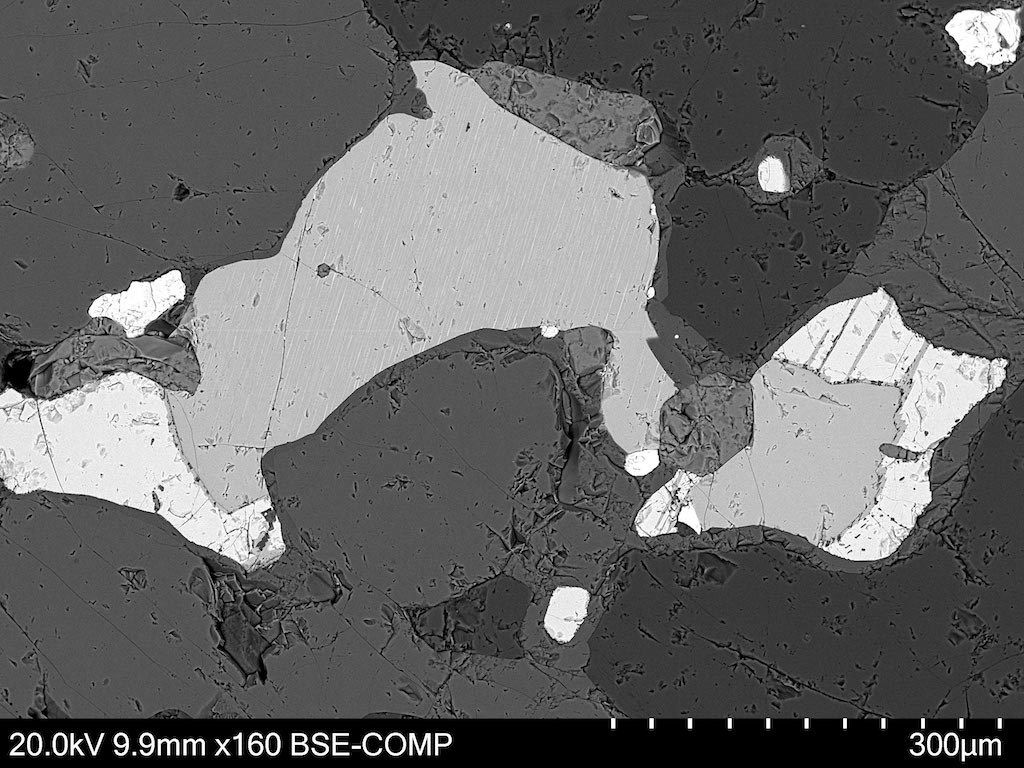

This is a sample from an igneous rock made up of predominantly silicate minerals, with accessory oxide and sulphide minerals.
A backscattered compositional image has been acquired as the first step in the mapping process.
Select Area mode to identify the elements of an area/region of analytical interest in the sample.
Select Point to choose a point of analytical interest in the sample and begin the microanalysis.
×
Well done!
You finished the identification of the elements in an area of interest.
